“Common information retrieval evaluation metrics”

Rank-Based Measures:

  1. Binary relevance
    • Precision@K (P@K)
    • Mean Average Precision (MAP)
    • Mean Reciprocal Rank (MRR)
  2. Multiple levels of relevance
    • Normalized Discounted Cumulative Gain (NDCG)

Precision@K

  1. Set a rank threshold K
  2. Compute % relevant in top K
  3. Ignores documents ranked lower than K

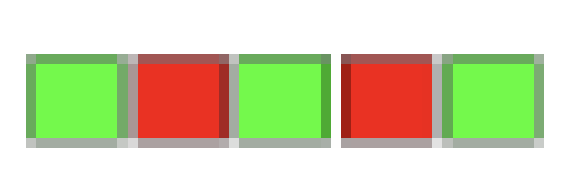

  4. Example:
    • Prec@3 of 2/3
    • Prec@4 of 2/4
    • Prec@5 of 3/5

Mean Average Precision

  1. Consider rank position of each relevant doc \(K_{1}\), \(K_{2}\),…, \(K_{R}\).
  2. Compute Precision@K for each \(K_{1}\), \(K_{2}\),…, \(K_{R}\)
  3. Average precision = average of P@K
  4. Example: \(\frac{1}{3} \cdot\left(\frac{1}{1}+\frac{2}{3}+\frac{3}{5}\right) \approx 0.76\)
  1. MAP is Average Precision across multiple queries/rankings
  2. MAP is macro-averaging: each query counts equally

When There’s only 1 Relevant Document

  1. Scenarios:
    • known-item search
    • navigational queries
    • looking for a fact
  2. Search Length = Rank of the answer
    • measures a user’s effort

Mean Reciprocal Rank

  1. Consider rank position, K, of first relevant doc
  2. Reciprocal Rank score \(=\frac{1}{K}\)
  3. MRR is the mean RR across multiple queries

Discounted Cumulative Gain

  1. Popular measure for evaluating web search and related tasks
  2. Two assumptions:
    • Highly relevant documents are more useful than marginally relevant document
    • the lower the ranked position of a relevant document, the less useful it is for the user, since it is less likely to be examined
  3. Uses graded relevance as a measure of usefulness, or gain, from examining a document
  4. Gain is accumulated starting at the top of the ranking and may be reduced, or discounted, at lower ranks
  5. Typical discount is 1/log (rank)
  6. DCG is the total gain accumulated at a particular rank p: \(DCG_{p}=r e l_{1}+\sum_{i=2}^{p} \frac{r e l_{i}}{\log _{2} i}\)

DCG Examples:

  1. 10 ranked documents judged on 0-3 relevance scale: 3, 2, 3, 0, 0, 1, 2, 2, 3, 0
  2. discounted gain: 3, 2/1, 3/1.59, 0, 0, 1/2.59, 2/2.81, 2/3, 3/3.17, 0 = 3, 2, 1.89, 0, 0, 0.39, 0.71, 0.67, 0.95, 0
  3. DCG: 3, 5, 6.89, 6.89, 6.89, 7.28, 7.99, 8.66, 9.61, 9.61

NDCG:

  1. Normalized Cumulative Gain (NDCG) at rank n
    • Normalize DCG at rank n by the DCG value at rank n of the ideal ranking
    • The ideal ranking would first return the documents with the highest relevance level, then the next highest relevance level, etc
    • Compute the precision (at rank) where each (new) relevant document is retrieved => p(1),…,p(k), if we have k rel.docs

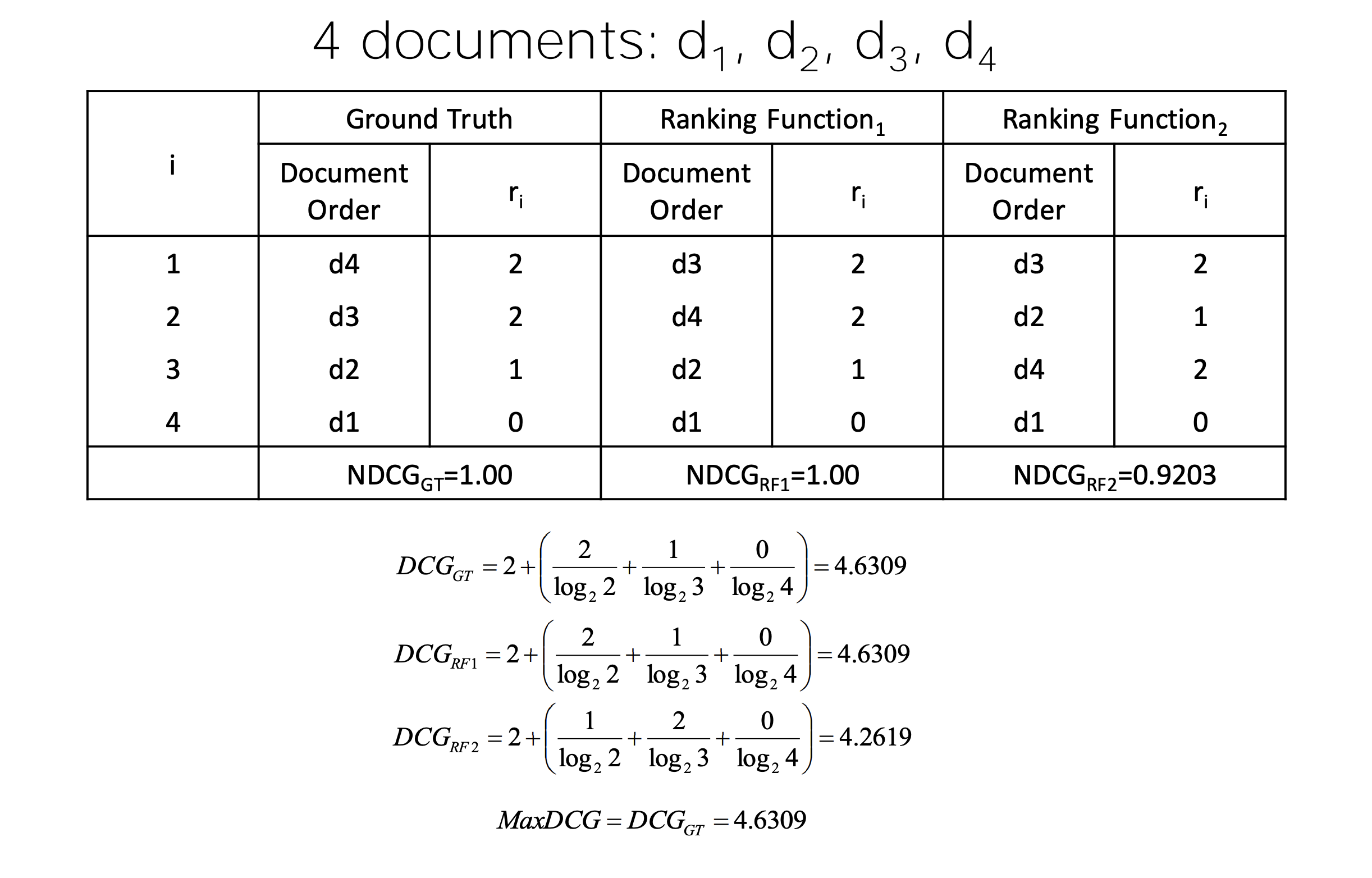

  2. An Example:
