“Introduction to ad-hoc information retrieval”

Task overview:

Given a query and a corpus, find the relevant items

  • query: textual description of information need
  • corpus: a collection of textual documents
  • relevance: satisfaction of the user’s information need

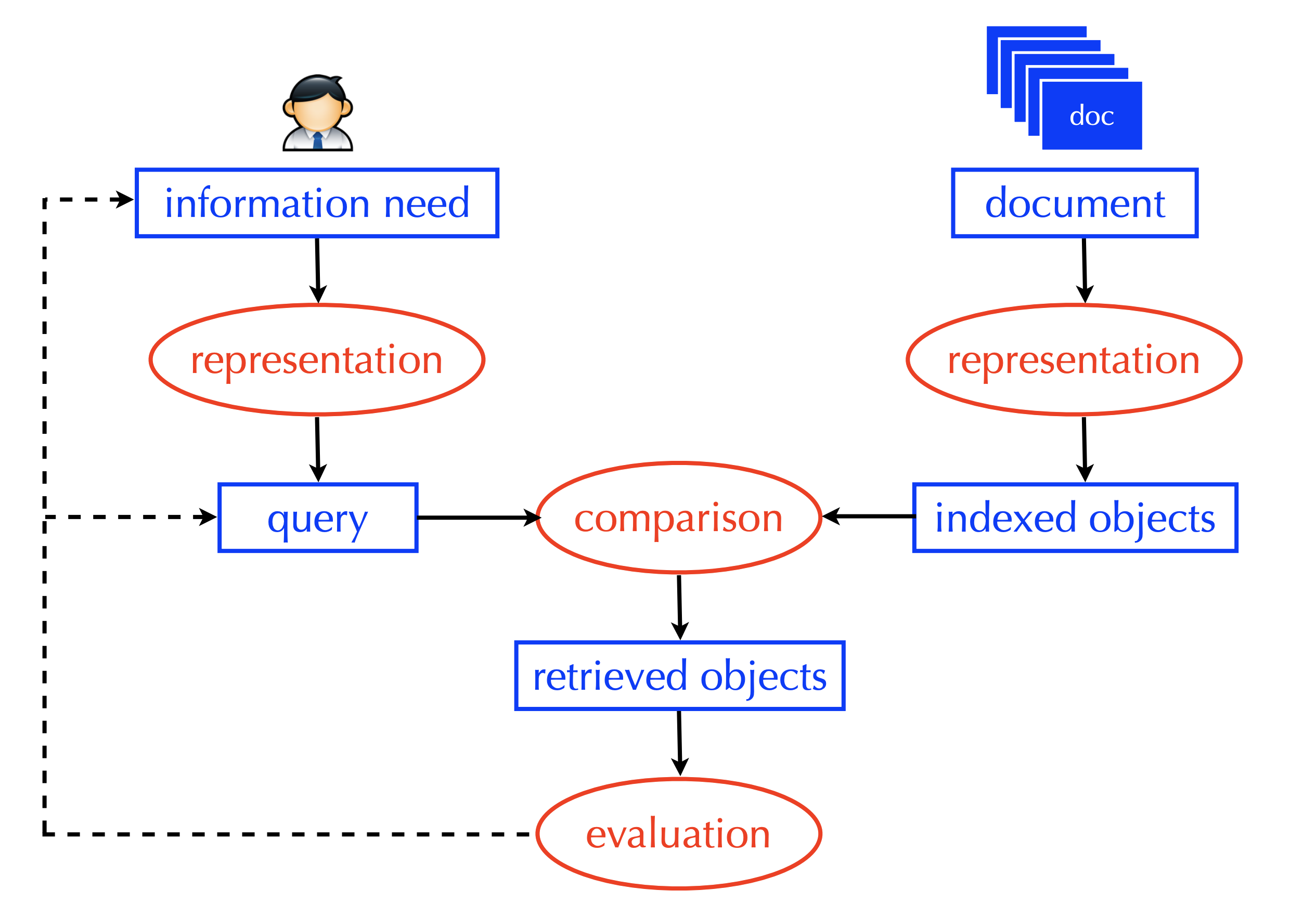

Basic Information Retrieval Process

Document Representation

  • Document representation = deciding which concepts should go in the index
  • Option 1 (controlled vocabulary): a set a manually constructed concepts that describe the major topics covered in the collection
  • Option 2 (free-text indexing): the set of individual terms that occur in the collection

Controlled vocab

  • Controlled vocabulary: a set of well-defined concepts
  • Assigned to documents by annotators (or automatically) example: MeSH

free-text indexing

  • Represent documents using terms within the document
  • Which terms? Only the most descriptive terms? Only the unambiguous ones? All of them?
  • Usually, all of them (a.k.a. full-text indexing)
  • The user will use term-combinations to express higher level concepts
  • Query terms will hopefully disambiguate each other (e.g., “volkswagen golf”)

free-text indexing preprocess

  • Step 1: mark-up removal: remove html tags
  • Step 2: down-casing
  • Step 3: tokenization
  • Step 4: stopword removal
  • Step 5: create an index using the union of all remaining terms

Boolean Retrieval

  • Assumption: the user wants to find all the relevant documents and only the relevant documents
  • evaluation metric: precision and recall
  • Query is explicit using AND, OR. example: “Trump AND Xi”

Most Basic View of a Search Engine

  • It uses an index to quickly locate the relevant documents
  • Index: a list of concepts and pointers to documents that discuss them

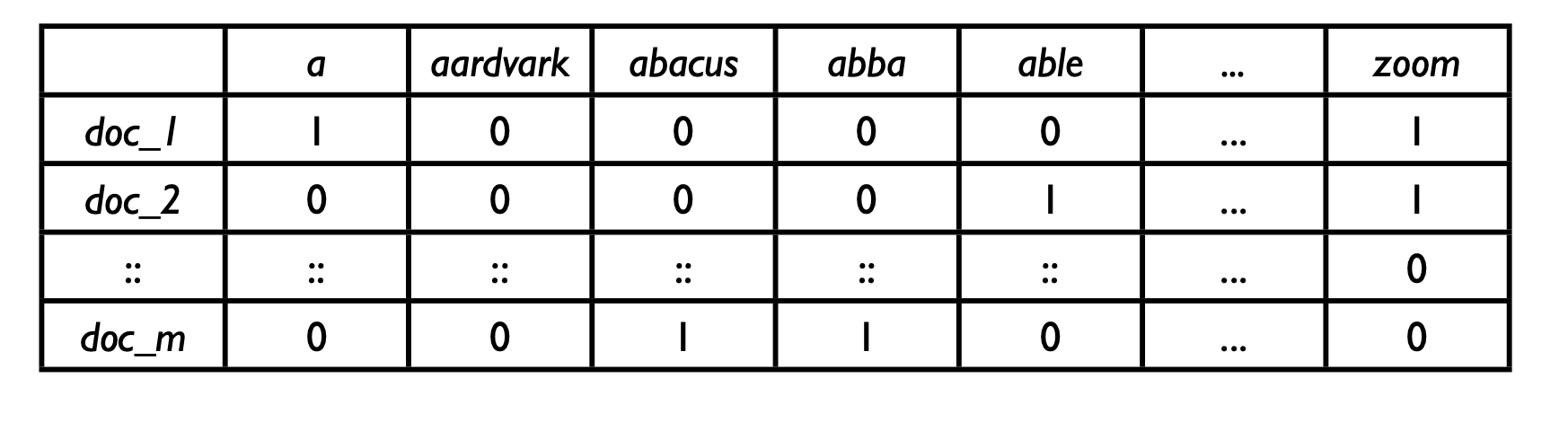

Bit-map index

  • 1 = the word appears in the document at least once
  • 0 = the word does not appear in the document
  • Does not represent word frequency, order, or location information
  • the matrix is very sparse

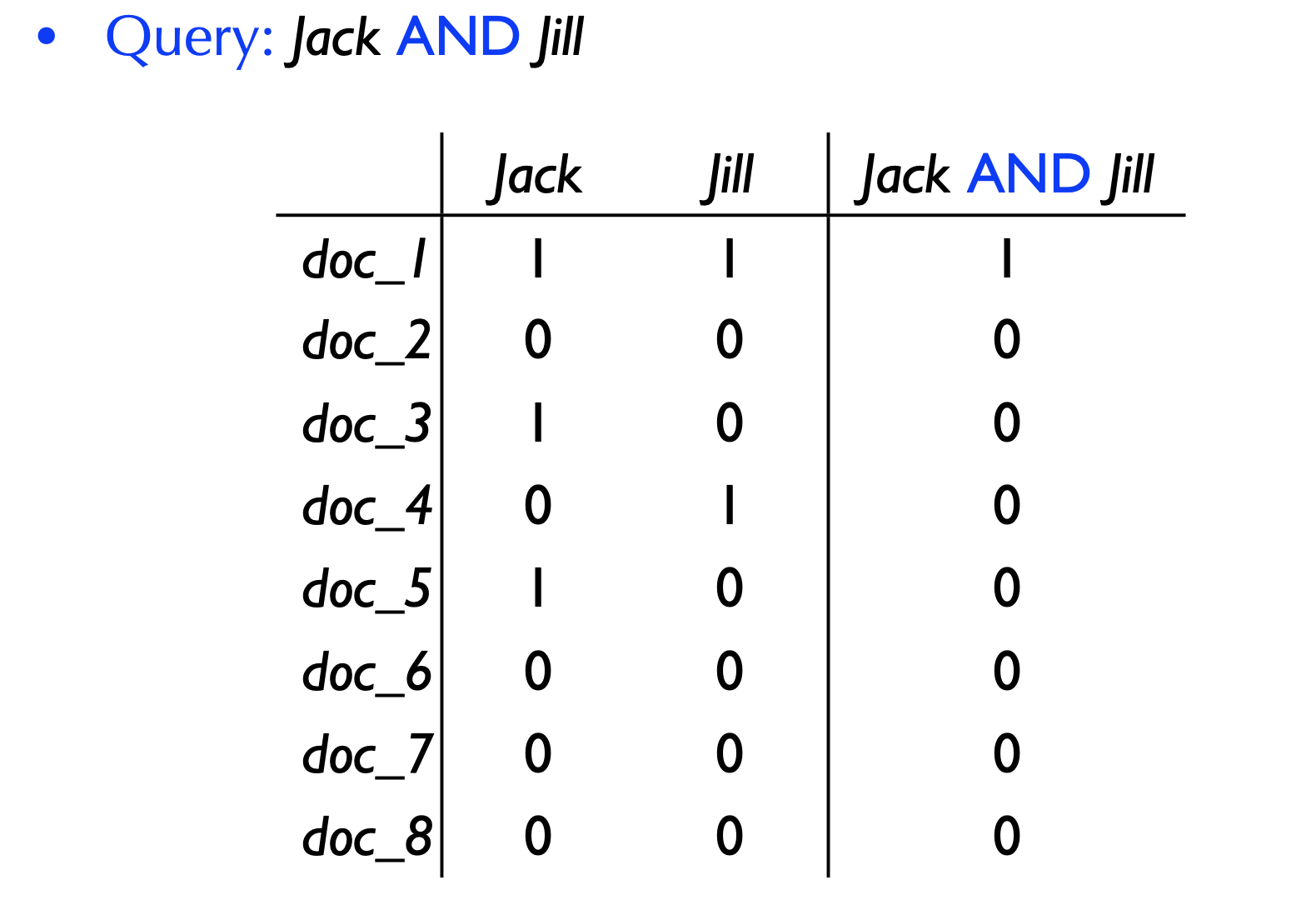

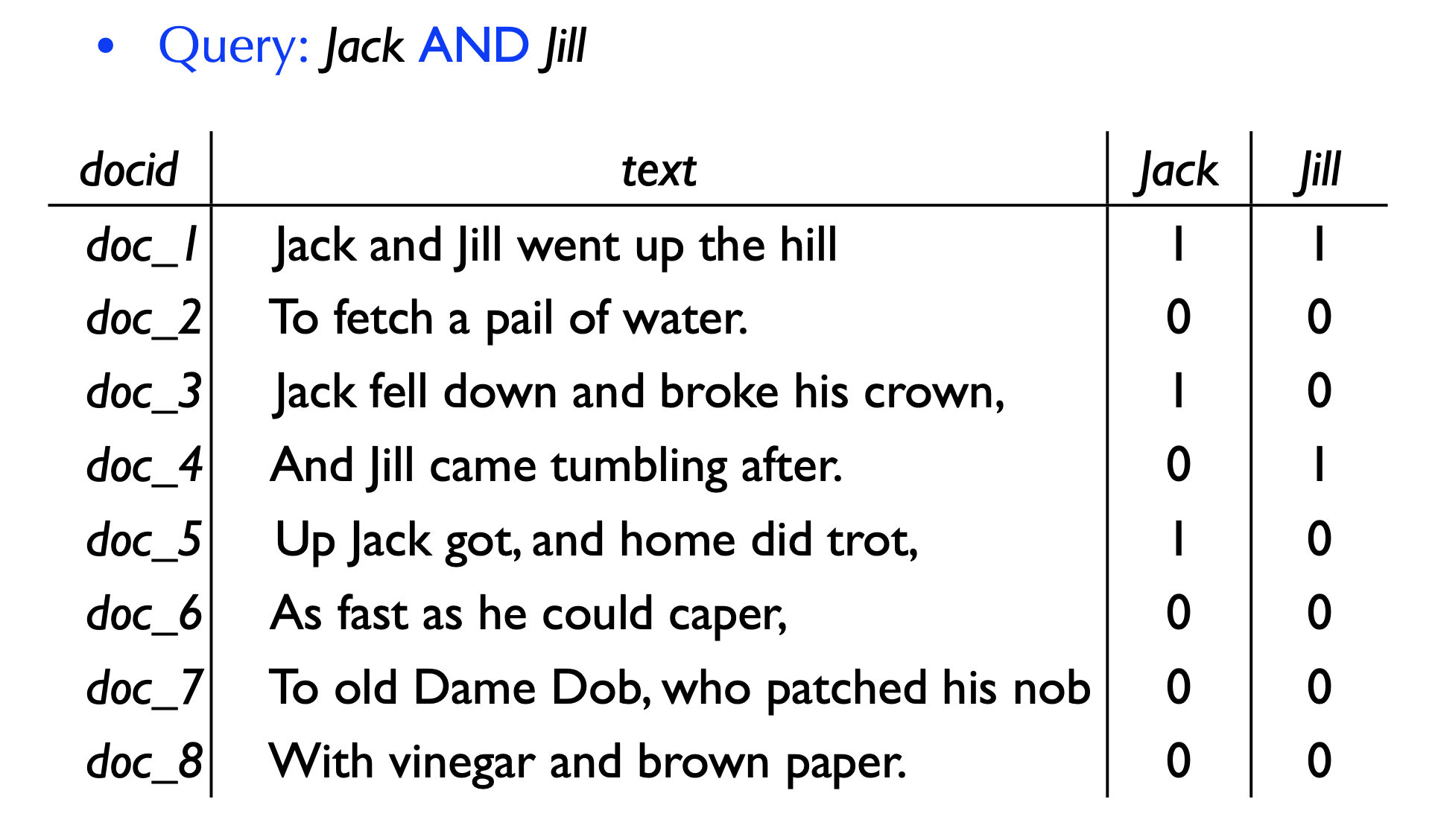

  • example of bit-map query and search process:
  • Alternative: represent only the 1’s: df = number of documents in which the term appears at least once
  • all documents need to be sorted by docid

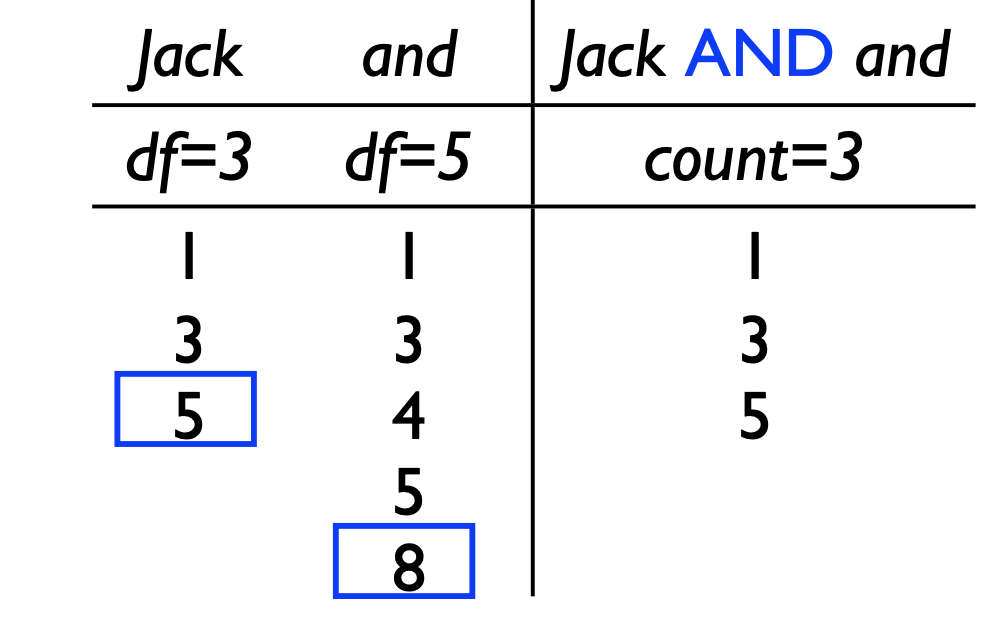

  • search process(AND):
    • If docids are equal, add docid to results and increment both pointers
    • If docids are not equal, increment pointer with lowest docid
    • Repeat until (1) end of one list and (2) docid from other list is greater (early stopping)

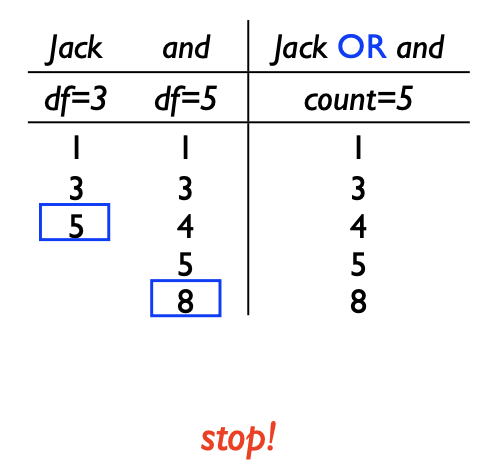

  • search process(OR):
    • If docids are equal, add docid to results and increment both pointers
    • If docids are not equal, add lowest docid and increment its pointer
    • Repeat until end of both lists
  • Retrieval Model 1: Unranked Boolean
    • Retrieves the set of documents that match the boolean query (an “exact-match” retrieval model)
    • Returns results in no particular order

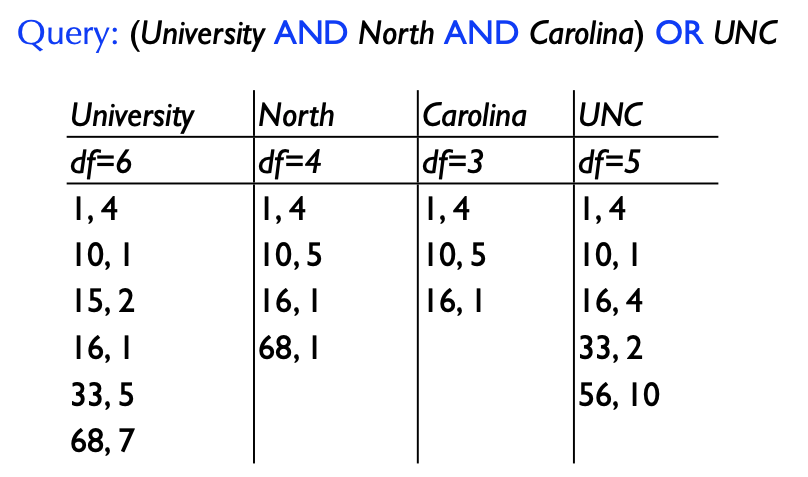

  • Retrieval Model 2: Ranked Boolean
    • consider tf = term frequency (# of times the term appears in the document)
    • At each step, keep a list of documents that match the query and their scores (a.k.a. a “priority queue”)

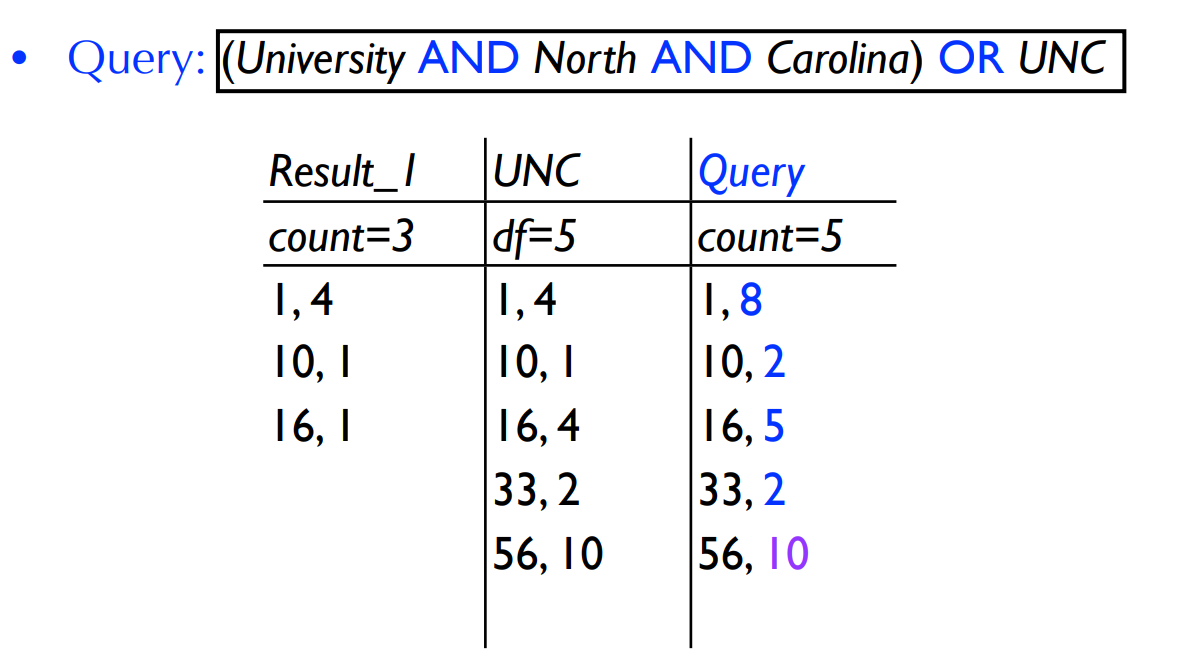

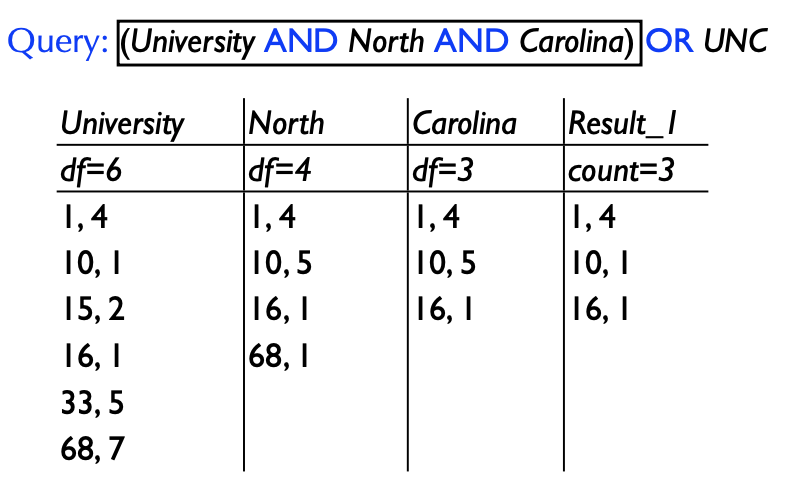

    • Score computation:
      • A AND B: adjust the document score based on the minimum frequency/score associated with expression A and expression B
      • A OR B: adjust the document score based on the sum of frequencies/scores associated with expression A and expression B
